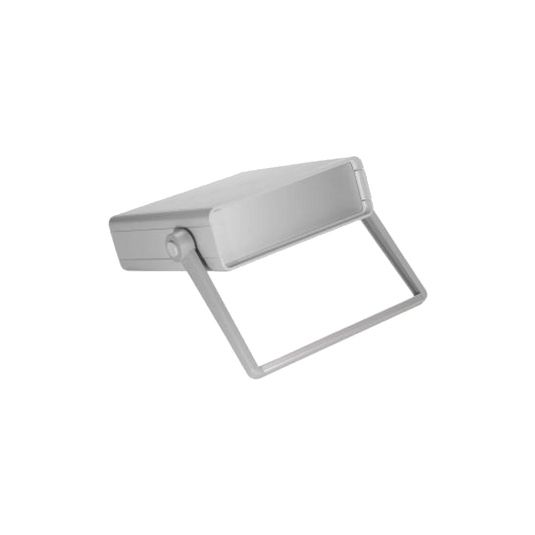

Portable Equipment IDAS Clamshell case Size 220x230x105 with carry handle part number 75-201089

Part number:
Availability 2 days
$99.50 $82.92
Price per pack of

Portable Equipment Clamshell case in Light Grey Fire Retardant ABS Size 220x230x105

  • Moulded in Grey fire retardant ABS material.
  • ”Clamshell” style enclosure with removable end panels for simplified assembly and test.
  • Modular construction using side spacers and a rigid fixing system screwed together through the base of the housing .
  • the front panels have 2 positions in the moulding allowing the standard 1.6mm Aluminium panel or a 3mm thick aluminium or plastic panel to be fitted.
  • The carry handle is supplied ready assembled instrument cases.
  • The carry bar of the handle incorporates a recess that can be used for ID label’s or other information
  • The maximum force on the handle should not exceed 200N or 20.3Kgf.

Volume Pricing

Please contact us for larger volume pricing.

Quantity Price
4+ $94.52 $78.77
6+ $89.56 $74.63
11+ $84.58 $70.48
16+ $79.61 $66.34
More Information
Assembly Method Screws
Features i/o panels
PCB Width 225mm
PCB Length 215mm
PCB Height 97mm
Colour Light Grey
