  • Membrane Top Veronex Case 150 x 90 x 30 - LCD Window added on request 75-228118

Membrane Top Veronex Case 150 x 90 x 30 - LCD Window added on request 75-228118

Part number:
75-228118
Availability 2 days
$21.66 $18.05
Price per pack of
1

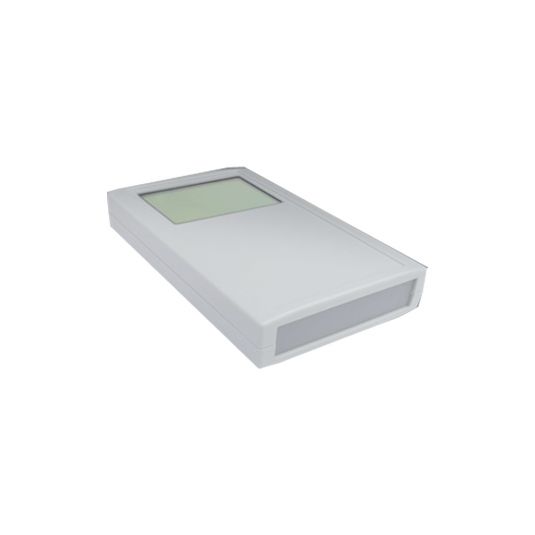

Instrument Case with Membrane Recess in Grey Fire Retardant ABS Size 150*90*30

Instrument Case with Membrane Recess in Grey Fire Retardant ABS Designed for portable applications and increased area to end panel access. Supplied without LCD window as standard Maximum viewable width of the display is 70mmwith an 82.5mm PCB The top cover has a recessed area to accept a 70 x 137 mm membrane keypad Supplied without LCD window as standard End panels moulded UL94-V0 flame retardant ABS can be removed for machining / Printing Wide internal end openings to allow max width for connector i/o . Orientation marks internally for easy assembly. Case outer surface designed to reduce surface damage. Alternative colours available - email us for details Supplied with 4 Case fixing screws, 4 Self Tapping screws for PCB mounting. Cases and end panels can be machined or printed to your requirements - email us details for a quotation.

Volume Pricing

Please contact us for larger volume pricing.

Quantity Price
Inc VAT Ex VAT
6+ $20.58 $17.15
11+ $19.50 $16.25
21+ $18.41 $15.34
51+ $17.33 $14.44
More Information
Type Veronex
Assembly Method Screws
Features Membrane area, i/o plastic panels
PCB Width 80mm
PCB Length 139mm
PCB Height 25mm
PCB Mounting N/A
Colour Grey
Hole Size N/A
