  • Hand-Held Veronex Case 150 x 80 x 45mm with Membrane recess and LCD window in Grey part number 75-228115

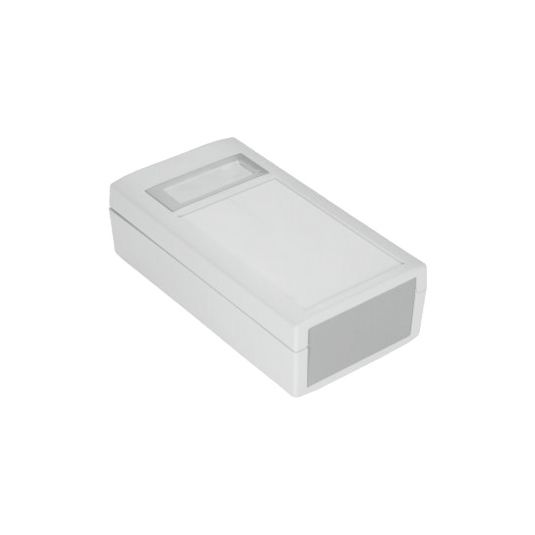

Hand-Held Veronex Case 150 x 80 x 45mm with Membrane recess and LCD window in Grey part number 75-228115

Part number:
75-228115
Availability 2 days
$24.40 $20.33
Price per pack of
1

Hand-Held Case Size 3 45mm High with Membrane recess and LCD window in Fire Retardant ABS Size 150x80x45

  • Designed for portable applications including data acquisition, field tests and measurements.
  • All plastic parts are UL94-V0 flame retardant ABS.
  • Case outer surface designed to reduce surface damage.
  • Size 2 and 3 cases feature a recessed membrane keypad area for 74mm X 40mm (size 2 case ) or 96mm X 60mm(size 3 case) membranes.
  • Size 2 and 3 cases also feature a cut-out that accepts LCD displays.
  • Alternative colours available - email us for details
  • Battery compartments with a sliding cover available.
  • Battery compartments accept a variety of battery sizes - holders available separately.
  • The Size 1 units are supplied with a Belt Clip Fitted as standard.
  • Belt clip fittings for size 2 & 3 units  are available order separately.
  • Supplied with 4 Case fixing screws, 4 Self Tapping screws for PCB mounting.
  • Cases and end panels can be machined or printed to your requirements - email us details for a quotation.

Volume Pricing

Please contact us for larger volume pricing.

Quantity Price
Inc VAT Ex VAT
6+ $23.17 $19.31
11+ $21.96 $18.30
21+ $20.74 $17.28
51+ $19.51 $16.26
More Information
Type Veronex
Assembly Method Screws
Features Membrane area, LCD panel, i/o plastic panels
PCB Width 70mm
PCB Length 139mm
PCB Height 40mm
PCB Mounting N/A
Colour Grey
Hole Size N/A
