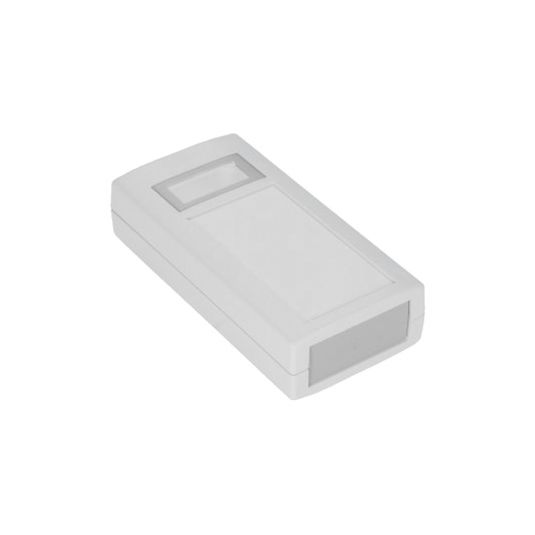

Hand-Held Veronex Case 120 x 60 x 30mm with Membrane recess, LCD window, and battery access in Grey part number 75-227909

Part number:
75-227909
Availability 2 days
$20.78 $17.32
Price per pack of
1

Hand-Held Case Size 2 30mm with Membrane recess, LCD window, and battery access in Grey Fire Retardant ABS Size 120x60x30

  • Designed for portable applications including data acquisition, field tests and measurements.
  • All plastic parts are UL94-V0 flame retardant ABS.
  • Case outer surface designed to reduce surface damage.
  • Size 2 and 3 cases feature a recessed membrane keypad area for 74mm X 40mm (size 2 case ) or 96mm X 60mm(size 3 case) membranes.
  • Size 2 and 3 cases also feature a cut-out that accepts LCD displays.
  • Alternative colours available - email us for details
  • Battery compartments with a sliding cover available.
  • Battery compartments accept a variety of battery sizes - holders available separately.
  • The Size 1 units are supplied with a Belt Clip Fitted as standard.
  • Belt clip fittings for size 2 & 3 units  are available order separately.
  • Supplied with 4 Case fixing screws, 4 Self Tapping screws for PCB mounting.
  • Cases and end panels can be machined or printed to your requirements - email us details for a quotation.

Volume Pricing

Please contact us for larger volume pricing.

Quantity Price
Inc VAT Ex VAT
6+ $19.74 $16.45
11+ $18.71 $15.59
21+ $17.66 $14.72
51+ $16.63 $13.86
More Information
Type Veronex
Assembly Method Screws
Features Membrane area, LCD panel, Battery compartment, i/o plastic panels
PCB Width 50mm
PCB Length 109mm
PCB Height 25mm
Colour Grey
