Desk Top Case IBX Style A Size 275x250x50 part number 500-54502

Part number:
500-54502
Availability 2 days
$60.28 $50.23
Price per pack of
1

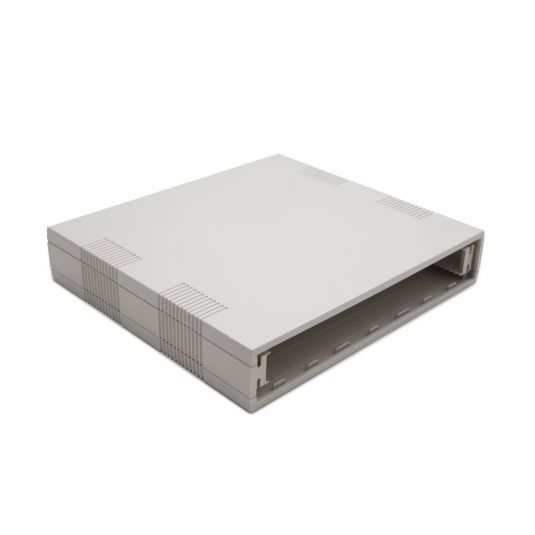

Desk Top Case IBX Style A moulded in UL94 rated ABS in light Grey Size 275*250*50

  • Strong and easily assembled enclosures moulded in Fire Retardant ABS, for circuit boards, power supplies, interconnections, controls and displays.
  • 4 individual sizes in heights from 25mm to 100mm in 25mm increments.
  • Three largest size Cases are suitable for either desktop “Type A” or portable “Type B” applications.
  • Portable version accept a strong tilt and swivel carrying handle ordered separately and can be locked in increments of 30 degrees.
  • The Aluminium Handle cross bar also incorporates a label recess.
  • Horizontal and vertical PCB guides are incorporated internally.
  • Horizontal guides being suitable for 6U Eurocard of either 160 or 220mm depths.
  • Four self-adhesive PCB mounting clips are supplied with each case positioned accurately using the reference grid moulded into the case.
  • A range of plastic sloping front panels and captured or screw-on anodised aluminium panels are available separately.
  • Each IBX case comes supplied with four moulded non-slip feet which allow units to be safely stacked on each other.
  • This range can be moulded in a range of other standard colours if required
  • These cases can be modified to your requirements - email us details for a quotation
  • Can be used with our standard case accessories

Volume Pricing

Please contact us for larger volume pricing.

Quantity Price
Inc VAT Ex VAT
4+ $57.26 $47.72
6+ $54.25 $45.21
11+ $51.24 $42.70
21+ $48.22 $40.18
More Information
Type IBX
Assembly Method Screws
Features i/o panels, Internal pcb guides
PCB Width 240mm
PCB Length 233mm
PCB Height 44mm
PCB Mounting Both
Colour Light Grey
