3U PTH Fully Configured Extender Cards 220mm-280mm deep 188-39011

Part number:
188-39011
0 In stock
$389.80 $324.83
Price per pack of
1

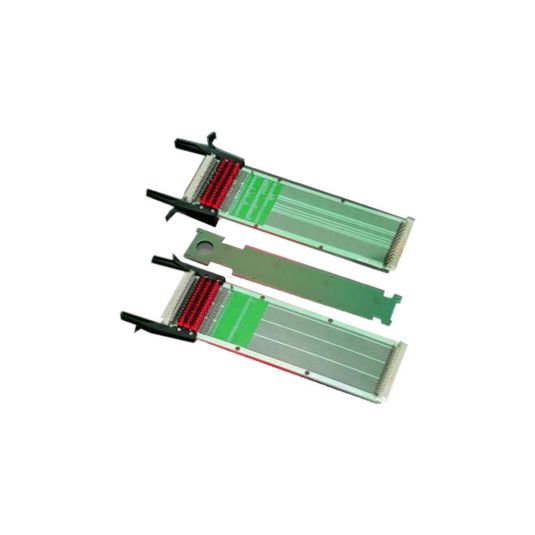

3U PTH extender card for use with standard depth card frames. PCB fully fitted with 96/96 way DIN 41612 style C connectors, Signal interupt pins and links, and reverse male DIN41612 connector for scope connection. Selected tracks bussed with extra wide tracks suitable for power and ground connections. Supplied assembled with card support and ejector brackets fitted.

  • 3U PTH PCB made from FR4 material UL94 V0 rated.
  • Designed for use with all IEC297 card frames.
  • Designed to be totally flexible with pin to pin traces.
  • Traces are 70 micron copper to minimise voltage drop.
  • DIN connector outer rows 1abc, 2abc, 31abc & 32abc have extra wide tracks for power ground applications.
  • Fully assembled with Din 41612 connectors and card support / Ejector brackets fitted.
  • Signal interrupt positions and Scope take off are assembled on this assembly.
  • Support Ejector brackets have been designed to provide planar extension of the card and to provide simple ejection of the card under test when finished.
  • Dimensionally compatible with IEC 297.
