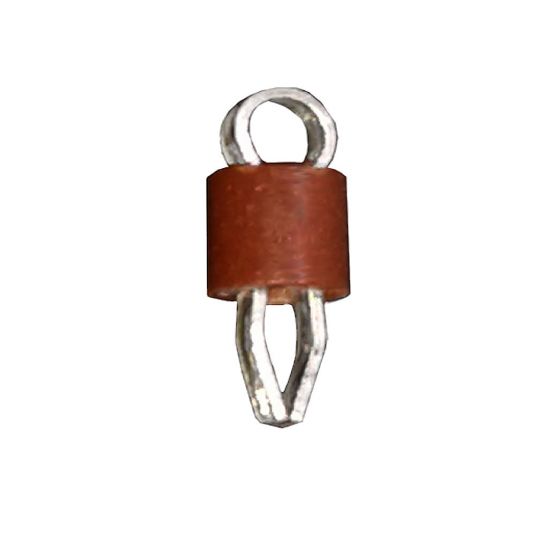

20-313154 PCB Test Point - Loop Terminal Assembly for 1.02mm dia. Hole - Brown

Part number:
20-313154
0 In stock
$19.87 $16.56
Price per pack of
100

PCB Test Point Terminal for 1.02 Nominal Holes used for attaching leads for test scopes and probes with scintered glass insulator this component is for boards 1.6mm thick - colour Brown

  • PCB Test Point Terminal assembly designed for attachment of scope probes etc.
  • The compliant pin design allows the terminal to be inserted without damaging the hole plating.
  • The terminal will remain in place even when the board is inverted for soldering.
  • The sintered glass bead has a recommended maximum working temperature of 475C. This exceeds all current standard temperature profile requirements.
  • Assemblies are available in 8 standard colours.
  • Material Specifications: Bead: Boro Silicate Sintered Glass, Wire Loop Material: Phosphor Bronze (BS2873) Plating: Electroplated Bright Tin: 3.0-5.0 micron.

Volume Pricing

Please contact us for larger volume pricing.

Quantity Price
Inc VAT Ex VAT
6+ $18.88 $15.73
11+ $17.88 $14.90
26+ $17.39 $14.49
51+ $16.90 $14.08
More Information
Colour Brown
Hole Size 1.02mm
PCB thickness <1.6mm
