  • 20-313144 PCB Test Point - Loop Terminal Assembly for 1.32 mm dia. Hole - Yellow

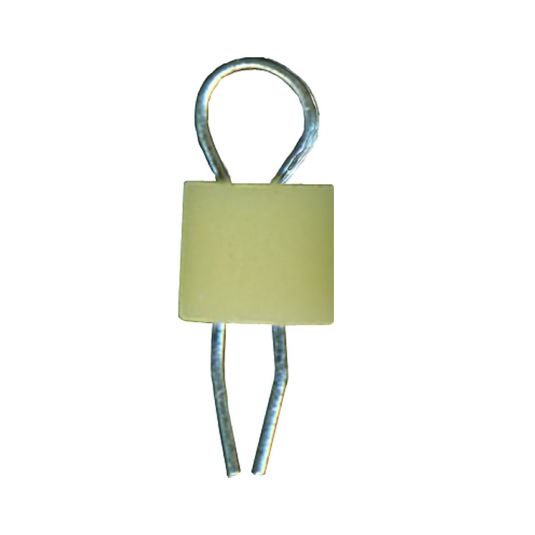

20-313144 PCB Test Point - Loop Terminal Assembly for 1.32 mm dia. Hole - Yellow

Part number:
20-313144
131 In stock
$19.87 $16.56
Price per pack of
100

PCB Test Point Terminal for 1.02 Nominal Holes used for attaching leads for test scopes and probes with scintered glass insulator - colour Yellow

  • PCB Test Point Terminal assembly designed for attachment of scope probes etc.
  • The compliant pin design allows the terminal to be inserted without damaging the hole plating.
  • The terminal will remain in place even when the board is inverted for soldering.
  • The sintered glass bead has a recommended maximum working temperature of 475C. This exceeds all curent standard temperature profile requirements.
  • Assemblies are available in 8 standard colours.
  • Material Specifications: Bead: Boro Silicate Sintered Glass, Wire Loop Material: Phosphor Bronze (BS2873) Plating: Electroplated Bright Tin: 3.0-5.0 micron.

Volume Pricing

Please contact us for larger volume pricing.

Quantity Price
Inc VAT Ex VAT
6+ $18.88 $15.73
11+ $17.88 $14.90
26+ $17.39 $14.49
51+ $16.90 $14.08
More Information
Colour Yellow
Hole Size 1.32mm
PCB thickness <1.6mm
SMT footprint N/A
