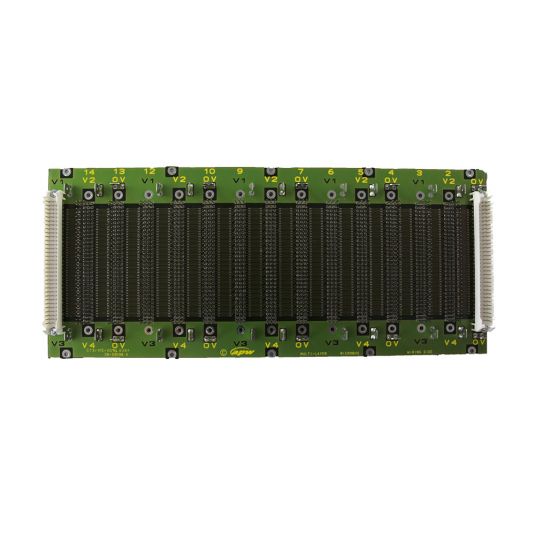

15 Slot Multilayer Microbus backplane for 96-96 part number 38-39106

Part number:
38-39106
1 In stock
$679.30 $566.08
Price per pack of
1

15 Slot 60 HP wide� Multilayer Microbus backplane� with connector positions on 4HP (20.32mm centres) and supplied as assembled with�rear shells on slots 1 and 15.

  • Multilayer PCB with 0V ground plane made from FR4 material UL94 V0 rated.
  • 0V guard tracking between all signal traces
  • Flexible power rail construction with up to 4 Vcc rails.
  • Fully assembled with Din 41612 connectors and faston power connectors.
  • Connectors on 4Hp pitch.
  • Dimensionally compatable with IEC 297.
  • Theroretical Characteristic impedance (Zo) = 100 Ohms +/- 5%.
  • PCB nominal tghickness 2.4mm.
  • Signal trace width is designed as 0.38mm.

Volume Pricing

Please contact us for larger volume pricing.

Quantity Price
Inc VAT Ex VAT
4+ $645.34 $537.78
6+ $611.36 $509.47
11+ $577.40 $481.17
16+ $543.43 $452.86
More Information
Type N/A
Hole Size N/A
